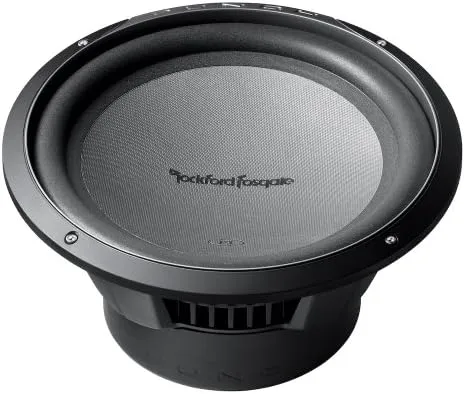

- 12-inch, 4-ohm subwoofer with 300 watts maximum power handling (150 watts RMS)
- Thermoformed polypropylene cone with high-density poly-foam surround
- High-temp voice coil with spun-laced Nomex re-inforcement collar
- Mount in either direction; reversible trim ring included
- Designed for small enclosures
Product Description
Since day one, we have spearheaded the car audio revolution. Nothing has changed. Rockford Fosgate is still the global leader in audio innovation and your passion is our purpose. We engineer the best audio systems for your lifestyle!
Amazon.com
You'll certainly get a lot of bass for your buck with the P1 12-inch subwoofers. These subwoofers were made for small sealed and vented enclosures, which make them suitable for a wide range of installations.
Rockford Fosgate Punch Series Subs
Featuring innovative parabolic cone designs, oversized surrounds and large motor assemblies, Punch subwoofers deliver deep, loud, aggressive bass--not to mention stunning cosmetics that you'll want to show off. For over 20 years, Punch subwoofers have shown the world that big bass, extended power handling and awesome cosmetics need not cost a fortune. One listen and you'll know why it's called The PUNCH.Punch subwoofers deliver deep, loud, aggressive bass. Click to enlarge.
Anodized aluminum voice coil formers provide excellent heat dissipation. Click to enlarge.
P1S412 Features
Speaker Construction
- Custom 10-AWG nickel plated push terminals
- High density poly-foam surround
- High-temp voice coil with spun-laced Nomex reinforcement collar
- Linear spider with embedded 16 AWG tinsel leads
- Parabolic injection molded ABS/Acrylic dustcap
- Protective PVC textured magnet cover
- Reversable ABS trim ring
- Thermoformed polypropylene cone
Aluminum V/C Former
Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide excellent heat dissipation. Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has the capacity to handle power under continuous damand, not instantaneous power handling, that over time, can damage voice coils.Reversible Mounting
Rockford Fosgate subwoofers can be mounted in either direction. A removable trim ring can be installed on the back or front side of the subwoofer frame. This gives the subwoofer a finished look regardless of mounting configuration.Stitched Tinsel Leads
Multipoint "periodic" stitched lead wire technique reduces the mass of each tinsel lead and spreads stress and strain over a greater area, significantly improving the reliability and performance of the subwoofer.These stitched tinsel leads withstand extreme duty cycles, fatigue and high current that is critical to robust design.
P1S412 Specifications
Size: 12" Impedance: 4-Ohm Power Handling: 150 Watts RMS
300 Watts Max Voice Coil Diameter: 1.5" 6-Layer (3.81 cm) Motor Size: 40 oz. Speaker Connector: Dual 10 AWG compression SPL(1w/1m): 86 dB Woofer Displacement: 0.048 cu. ft. (1.36 Liters) Cutout Diameter: 11.125 in. (28.26 cm) Mounting Depth: 5.875 in. (14.92 cm)Thirty Years of Rockford Fosgate
Rockford Fosgate products have been designed and engineered in Tempe, Arizona since the beginning. Rockford's 30 year reputation is grounded in engineering and manufacturing some of the finest audio products in the world. The company's no-compromise approach has yielded patented iconic products such as the Punch EQ, Punch 45 amplifier and the 3Sixty integrated signal processor. Today, Rockford's new products push the performance envelope even further. Each new product is a step forward--they sound bigger, they play louder, and run longer. Rockford never settles for "good enough."The 2010 product line represents the company's core philosophy. Rockfords new amplifiers, speakers and subwoofers have raised the bar on the competition.
What's in the Box
Rockford Fosgate Punch P1 P1S412 12-Inch 150-Watt Subwoofer - 4 Ohm, Trim Ring, Installation Hardware, User's ManualOn a Tighter Budget?
Consider the Prime Series R1S412.Rockford Fosgate Punch Series P1 Subwoofers
Rockford Fosgate Punch P1 P1S410 10-Inch 150-Watt Subwoofer - 4 Ohm Rockford Fosgate Punch P1 P1S412 12-Inch 150-Watt Subwoofer - 4 Ohm Rockford Fosgate Punch P1 P1S415 15-Inch 400 Watt Subwoofer - 4 Ohm Rockford Fosgate Punch P1 P1S48 8-Inch 150-Watt Subwoofer - 4 Ohm Rockford Fosgate Punch P1 P1S810 10-Inch 150-Watt Subwoofer - 8 Ohm Rockford Fosgate Punch P1 P1S812 12-Inch 150-Watt Subwoofer - 8 Ohm Rockford Fosgate Punch P1 P1S815 15-Inch 400 Watt Subwoofer - 8 Ohm Rockford Fosgate Punch P1 P1S88 8-Inch 150-Watt Subwoofer - 8 Ohm
From the Manufacturer
From the Manufacturer Manufacturer's Review (December 30, 2008)
You'll certainly get a lot of bass for your buck with the P1 12" subwoofers. These subwoofers were made for small sealed and vented enclosures, which make them suitable for a wide range of installations. The P1S412 is a 12" 4-Ohm SVC subwoofer with 150 Watts RMS (300 Watts max) power handling, a fine addition to any system.
More bass for your buck. Click to enlarge.
Custom 10-AWG nickel plated push terminals and protective PVC magnet cover. Click to enlarge.
Ready to be mounted in either direction. Click to enlarge.
Features:
- Custom 10-AWG nickel plated push terminals
- High density poly-foam surround
- High-temp voice coil with spun-laced Nomex re-inforcement collar
- Linear spider with embedded 16 AWG tinsel leads
- Parabolic injection molded ABS/Acrylic dustcap
- Protective PVC textured magnet cover
- Reversable ABS trim ring
- Thermoformed polypropylene cone
Aluminum Voice Coil Former
Two things generally happen when voice coils heat-up.
- They can generate heat close to the melt-down temp of their adhesive bonds which leads to eventual failure.
- Voice coil DC resistance increases and reduces SPL output.
Solution... Rockford Fosgate subwoofers use aluminum formers or voice coils for their excellent heat dissipation and SPL capabilities unlike many other plastic substitutes.
CEA-2031 Compliant
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has the capacity to handle power under continuous damand, not instantaneous power handling, that over time, can damage voice coils.
Reversible Mounting
Rockford Fosgate subwoofers can be mounted in either direction. A removable trim ring can be installed on the back or front side of the subwoofer frame. This gives the subwoofer a finished look regardless of mounting configuration.
Stitched Tinsel Leads
Multipoint "periodic" stitched lead wire technique reduces the mass of each tinsel lead and spreads stress and strain over a greater area, significantly improving the reliability and performance of the subwoofer.
These stitched tinsel leads withstand extreme duty cycles, fatigue and high current that is critical to robust design.
What's in the Box
P1S412 subwoofer, user's manual
